Purpose

The Protocol object is used to represent the protection level of a Dataflow object/communication.

Object

Connection

Description

Dataflow

Protocol Status

The defense attributes of the Protocol object has an impact on the connected Dataflow object(s).

Attack Steps and Defenses

Attack Step

Description

None

There are no attack steps associated with the Protocol object.

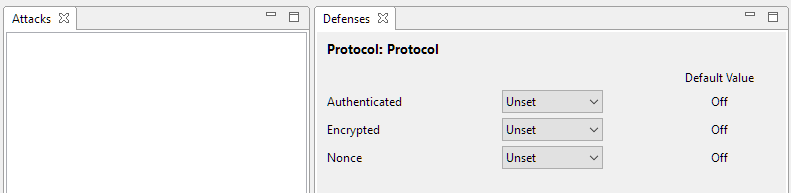

Defense

Description

Impact

Default

Authenticated

Cryptographic authentication should guarantee that the information provided is authentic i.e. it has not been altered or substituted. If a Protocol is Authenticated it is assumed to ensure authentication i.e. weak or broken cryptos should be modeled as not authenticated.

Reduces the probability of ManInTheMiddle.

Off

Encrypted

Nonce is an abbreviation of number used once and can be appended to communication to ensure that old messages cannot be reused in replay attacks. The nonce in securiLang should be interpreted as a cryptographic non-predictable value.

Prevents Eavesdrop and reduces the probability of ManInTheMiddle.

Off

Nonce

Nonce is an abbreviation of number used once and can be appended to communication to ensure that old messages cannot be reused in replay attacks. The nonce in securiLang should be interpreted as a cryptographic non-predictable value.

Prevents Replay attacks.

Off
