For cleaning up the view of our network structure, we may drop the AccessControl and the Firewall object into the Router object, since they belong to each other. Objects may be displayed in the same image/canvas, but, quite soon, such an approach might get rather cluttered. Therefore, we provide the possibility to contain/hide objects that have relations to each other within other objects.

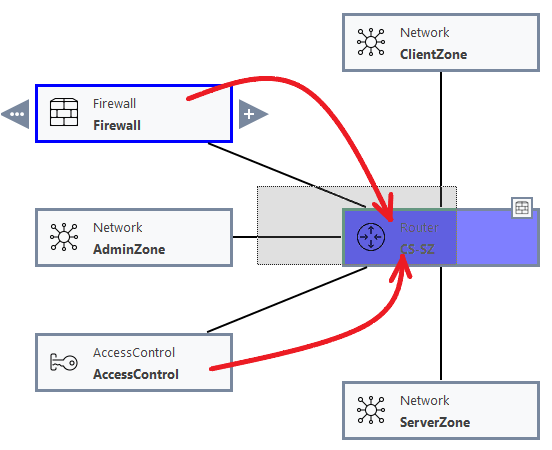

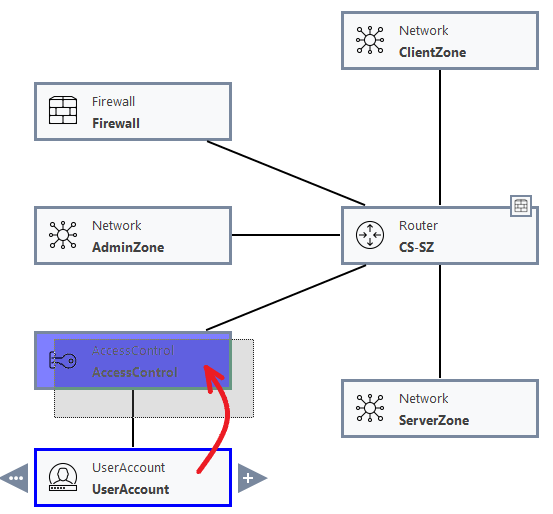

The following picture illustrate how to move/hide objects into other objects. First move the UserAccount object into the AccessControl object and then the AccessControl and the Firewall into the Router object.
