Firewall
Purpose

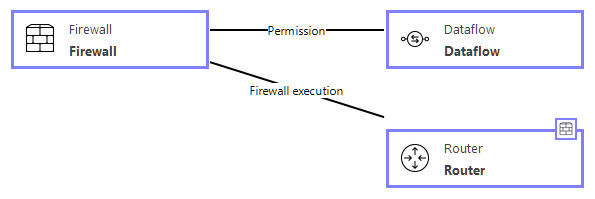

A Firewall object is used to represent communication restrictions in a Router. One way of looking at a Firewall object is to see it as a set of rules used by the connected Router object. In order to allow a Dataflow to traverse a Router with a Firewall, you need to connect the Dataflow to either the Router or the Firewall.
Connections


Object | Connection | Description | Function |
---|---|---|---|
Router | Firewall Execution | A Router is connected to a Firewall object to show that the Router has restrictions regarding what communication may traverse it. | Can prevent Forwarding on the Router. |
Dataflow | Permission | Connect a Dataflow to a Firewall to denote that the Dataflow is allowed to traverse the Router. | Can prevent Forwarding on the Router. |
Attack Steps and Defenses


Attack Step | Description | Leads to |
---|---|---|
Compromise | The possibility to control/own it. | Router: Forwarding |
DiscoverEntrance | The possibility to find out what connections are allowed by the firewall rule set. | Router: Forwarding |
Defense | Description | Impact | Default |
---|---|---|---|
Enabled | This defense concerns whether the firewall is functioning and performs stateful inspection and packet filtering as expected. | Can prevent Forwarding. | On |
KnownRuleSet | This defense concerns whether the firewall rule set is configured properly and known to the modeler. | Prevents DiscoverEntrance. | 0.5 |
