Allowing the Dataflow

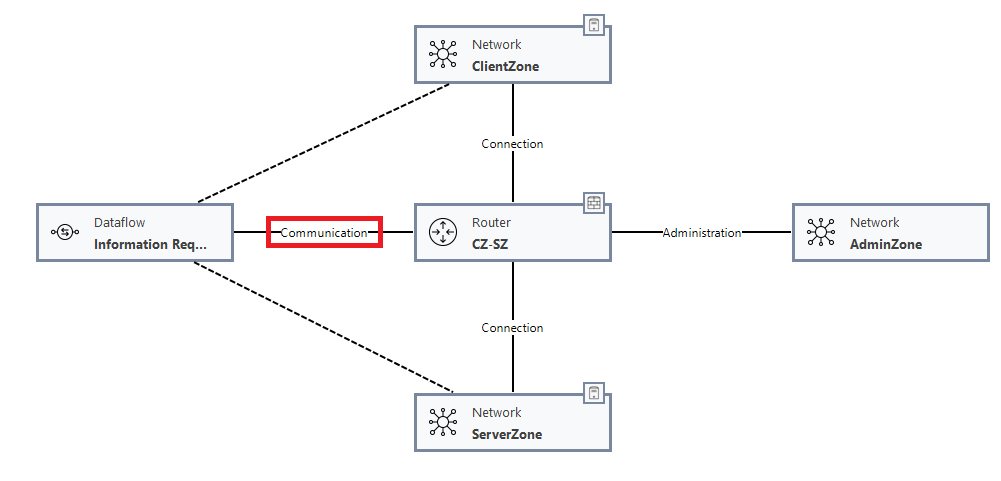

By now, we are almost finished squeezing all information out of the simple sketch we got as input. Next thing, we need to allow the data flow Information Request to travel between the ClientZone and the ServerZone. To do that, we need to add a connection between the Information Request data flow and the CZ-SZ Router object;

This will state that the dataflow Information Request is allowed to travel via the CS-SZ router and that all properties of the router is applied to the dataflow. In this case, it is protected by (and allowed to go through) the firewall.
